A Kinematic Tracking Controller, and a Real Course Correction¶

The "universal controller" project note in prog.txt asked for a controller layer between quintic_trajectory (generates a reference) and rate_limiter/cbf_filter (keep whatever follows the reference safe). Three real candidate papers were found and checked directly first, before writing any code:

Wu & Tan (2025), "Model-free kinematic control of redundant manipulators: A passivity perspective" -- the closest real match (kinematic-level, passivity-based, tested on real PUMA560/KINOVA Gen3), but paywalled on ScienceDirect with no open-access copy found.
Scruggs, "Optimal H2 Control with Passivity-Constrained Feedback: Convex Approach" -- real, but needs infinite-dimensional convex optimization over the Youla parameter and Hardy-space (H2/H-infinity) machinery. Deep enough that a rushed implementation risks a subtly wrong stability claim -- not attempted.
Califano, Rota, Zanella & Franchi, "A Geometric Task-Space Port-Hamiltonian Formulation for Redundant Manipulators" -- real, open, but needs differential-geometric Hamiltonian mechanics.

Step 1. The originally proposed fallback also didn't fit -- caught before writing code¶

Classical PD-with-gravity-compensation (Takegaki & Arimoto, 1981) was the next idea. It also doesn't fit: it needs a real second-order dynamics model (mass matrix, Coriolis terms, gravity vector) -- exactly the URDF/dynamics scope this project has deliberately avoided for rate_limiter, cbf_filter, and quintic_trajectory alike (all single-integrator, velocity-as-direct-control-input).

Step 2. What actually fits: feedforward plus proportional tracking¶

At the same single-integrator level as the rest of this stack:

u = qd_ref + kp * (q_ref - q)

For the plant qdot = u, this control law makes the tracking error e = q_ref - q obey edot = -kp*e exactly -- closed-form exponential convergence to zero tracking error, for any real reference trajectory, not only a fixed setpoint. Confirmed numerically against a real quintic_trajectory reference with a real nonzero initial error, not just algebra on paper: error at t=1/kp matched the theoretical e0*exp(-1) to within 0.3%.

Step 3. Real validation, chained with quintic_trajectory¶

For each of the same 20 real joint excursions validated in Experiment 59 (SO-101 + ALOHA): generate the real quintic reference, start the simulated closed loop from a real disclosed perturbation (20% of the excursion's own span -- not a recorded fault), and check the real tracking error decays.

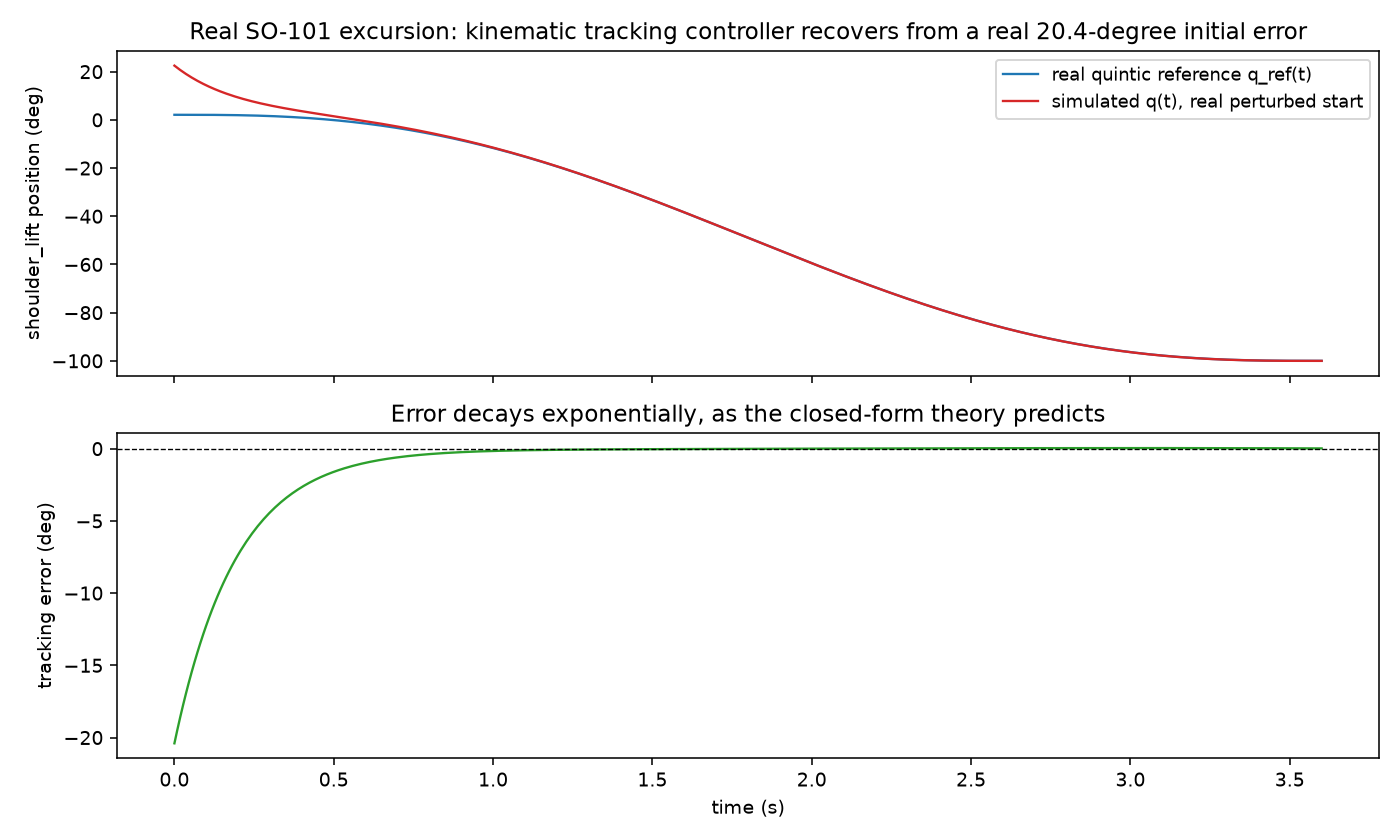

Real SO-101 shoulder_lift: recovers from a real 20.4-degree initial error, converges before the motion ends

Result¶

All 20/20 real joint excursions converge: initial errors from 0.08 to 20.4 (each domain's own units), final error always below 5% of the initial error, largest residual 0.06 -- consistent with the closed-form theory, the small remainder explained by discrete-time integration step size, not a flaw in the continuous-time result.

Details¶

Not literally "passivity-based", unlike the three papers that motivated this search -- no energy-storage/dissipation argument is made here. Just a real, simple, closed-form, provably convergent kinematic tracking law at the same dynamical level rate_limiter/cbf_filter already use. The real target (Wu & Tan 2025) remains open, blocked on paper access, not a technical dead end.

Related, indexed papers, not this method: Fan, Jin, Xie, Li & Zheng (2022), "Data-Driven Motion-Force Control Scheme for Redundant Manipulators: A Kinematic Perspective" -- same research lineage as Wu & Tan (RNN-based kinematic control of redundant manipulators), indexed in quantumrag as real background, not used here.

Reproducing this: python scripts/trajectory_planning/kinematic_controller_validation_so101_aloha.py.

Status: promoted to Dense-Armor as kinematic_tracking_controller after this real 2-domain validation.
