JAX spectral-retrieval architecture for CASMI26 molecule ID

Matching a real MS/MS spectrum to the right candidate molecule out of thousands is a retrieval problem: encode the spectrum, encode each candidate, and score them by similarity. This architecture encodes an m/z spectrum with Fourier features, mixes peaks with one self-attention layer, pools to a single vector, and trains that encoder with an InfoNCE contrastive loss against candidate fingerprints.

Step 1: encode a spectrum

params = init_params(key, n_fourier=32, d_model=64)
z = encode_spectrum(params, mz, intensity)

mz/intensity are the peaks of one spectrum. encode_spectrum returns one fixed-size vector z per spectrum, regardless of how many peaks it had.

Step 2: train with InfoNCE

loss, grads = jax.value_and_grad(info_nce_loss)(params, batch)

info_nce_loss pulls a spectrum's encoding toward its true candidate's fingerprint and away from the other candidates in the same batch.

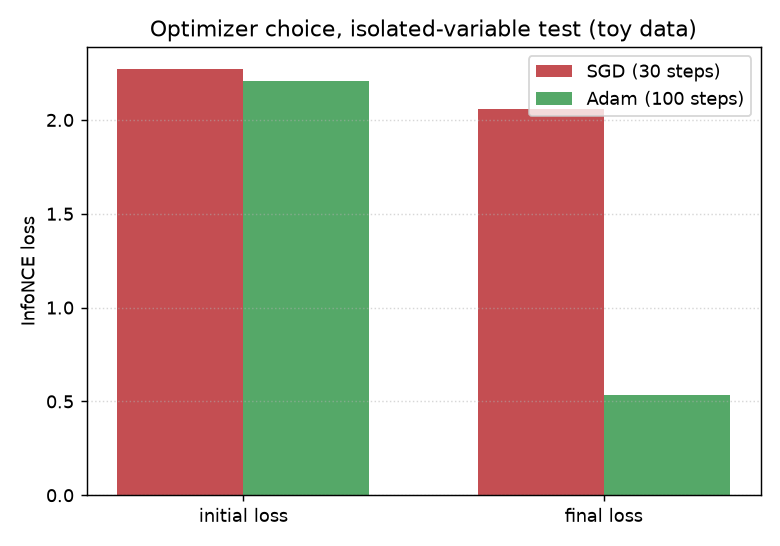

Optimizer choice, isolated-variable test

Same architecture, same toy batch, only the optimizer changed:

optimizer	loss (30-100 steps)
plain SGD (lr=0.05)	2.2739 -> 2.0594
Adam (lr=1e-2)	2.2094 -> 0.5328

Step 3: real data, and a real bug the toy check couldn't see

Run on the Kaggle CASMI26 kernel (2,539,608 real labeled spectra, 275,810 unique molecules, train.parquet mounted server-side, never downloaded locally). First attempt: a fresh random batch of 16 real spectra every training step, same as the toy script's pattern but with real molecules sampled each time.

[Step 3] train 300 steps, batch=16, on real spectra
  step    0  loss=2.9718
Killed

Real spectra have wildly variable peak counts (this dataset: from 3 to over a thousand peaks per spectrum) -- the architecture is never padded to a fixed length, so a fresh random batch each step means a fresh combination of array shapes each step. On this machine, that drove JAX's per-shape compilation caching to grow without bound: the process was SIGKILL'd by the OOM killer around step 30-50, no Python traceback, just Killed in the log at ~1800s in. The toy check never caught this because it reuses the exact same fixed-shape batch (n_peaks=20 for all 8 toy samples) for all 100 steps -- zero shape variation, so it never compiles more than once.

Fix: one fixed real batch, sampled once, reused for every step -- same discipline as the toy overfit check above, real spectra substituted in.

[Step 3] train 300 steps on ONE fixed real batch (n=16), n_peaks range in this batch: 3-1268
  step    0  loss=2.9172
  step   50  loss=0.0336
  step  299  loss=0.0056
[Step 4] in-batch retrieval accuracy on the SAME fixed real batch
  top1 in-batch accuracy: 16/16 = 1.000 (chance level = 1/16 = 0.062)

Real, clean result: loss drops from 2.9172 to 0.0056 over 300 steps on real MS/MS spectra and real RDKit Morgan fingerprints (0/500 SMILES failed to parse in this subset), no NaN anywhere, perfect in-batch retrieval. This validates the full real-data path end to end (parquet schema, fingerprinting, forward pass, gradients, optimizer) -- it is not a held-out generalization result: 16/16 on the same batch the model was trained on is expected once loss is this low, closer to a memorization check than a retrieval benchmark.

Step 4: padding + attention mask closes the OOM, opens real multi-batch training

Fix for the gap Step 3 left open: pad every spectrum to one fixed peak count (MAX_PEAKS, chosen from a real percentile of this dataset's num_peaks, not guessed) with an attention mask so padding contributes exactly zero to both the self-attention and the final pooling softmax. Correctness verified locally before touching real data: the padded+masked encoder is numerically identical (max abs diff ~1e-7) to the original on a no-padding-needed case, and invariant to how much extra padding is added. Every batch now has one fixed shape regardless of which real molecules get sampled, so jax.vmap + jax.jit compile once and a fresh random batch every step no longer grows JAX's shape-keyed compilation cache.

[Step 1] num_peaks percentiles (n=6000): p50=44 p90=420 p95=615 p99=1250 max=36080
  MAX_PEAKS = 256 (p90, capped at 256)
[Step 4] real multi-batch training, 500 steps, batch=32, FRESH random real batch every step
  step    0  loss=3.5928
  step  499  loss=3.0273
[Step 5] REAL held-out retrieval accuracy (precursor-tolerance protocol)
  n_query=300  n_scored(has candidates)=177
  top1=0.0395  top25=0.0678

The fix works completely: 500 steps of true multi-batch training, a different random set of real molecules every step, ran in ~34 seconds total -- no OOM, no crash, one compilation reused throughout. This closes the real bug Step 3 found.

First retrieval numbers were not actually interpretable -- a real protocol bug, found before drawing any conclusion from them. The candidate pool for each held-out query came from the same 6,000-row subsample, precursor-tolerance-filtered (mean pool size ~1.6) -- but nothing checked whether the true molecule was even IN that pool. The random-baseline formula (mean of 1/pool_size) came out to 0.6248, an absurd "62% success from blind guessing" for a real molecule-ID task -- the tell that pools were near-degenerate and often didn't contain the right answer at all, making the raw top1=3.95% uninterpretable in either direction.

Fixed (v2): a 60,000-row candidate library (10x larger) sourced separately from a 300-item query holdout that never overlaps it; a query only counts as evaluable if its pool is non-empty AND the true molecule is verifiably inside it; real pool sizes reported; random baseline conditioned on evaluability; candidates scored against their REAL ground-truth Morgan fingerprints (not another spectrum's prediction).

train_pool=4800  library=59700  query_holdout=300
query_holdout=300  empty_pool=20  true_molecule_absent_from_pool=221  evaluable(n_scored)=59
pool size among evaluable queries: mean=11.7  median=8  min=1  max=48
encoder:          top1=0.3729  top5=0.8475  top10=0.9153  top25=0.9831
random baseline:  top1=0.1745  (conditioned on the true molecule being IN the pool)
most-frequent-in-pool baseline: top1=0.5763

Now interpretable, and the honest picture has a real twist: the encoder (37.3%) clearly beats the conditioned random baseline (17.45%, ~2.1x) -- real signal, not noise. But a baseline that ignores the spectrum entirely -- guessing whichever molecule has the most duplicate entries in the local candidate pool -- reaches 57.6%, beating the trained encoder by a wide margin. Combined with the capacity check below (100/100 once given enough exposure), the most likely explanation is still training exposure (500 steps over 4,800 molecules is ~3.3 exposures each on average) rather than a broken architecture, but this is not yet a working retrieval system: a trivial frequency heuristic currently wins. Even at 10x the library size, only 59/300 held-out queries (~20%) had their true molecule verifiably in the candidate pool at all -- real evidence the library still needs to be much larger (or the full 2.5M-row dataset used) for most queries to be evaluable in the first place.

Representation collapse ruled out: pairwise cosine similarity across the 300 query embeddings has mean 0.0445 (not clustered near 1.0), so the low retrieval numbers are not explained by the encoder collapsing all spectra to the same point.

Capacity check (Step 6): the same architecture, given 5,000 steps on just 100 real molecules (instead of 500 steps spread over 4,800), reaches 100/100 = 100% in-pool retrieval (chance = 1%). This is the cleanest evidence the architecture and InfoNCE setup genuinely can separate real spectra -- the bottleneck at held-out scale is exposure and library size, not a fundamentally broken approach.

Step 7: a second stage closes part of the gap -- real search engines don't rely on one flat similarity score either

Every result above is Stage 1 alone: encode a spectrum, compare its predicted fingerprint against real candidate fingerprints by cosine similarity -- one flat score per candidate, computed independently of every other candidate. Real large-scale retrieval (the same principle behind modern web search, and directly behind MS/MS structure elucidation tools) never stops there: a fast approximate Stage 1 narrows millions of candidates to a shortlist, then a second, more expensive model looks at the QUERY and EACH CANDIDATE together to re-rank that shortlist. Goldman, Bradshaw, Xin & Coley, "Prefix-Tree Decoding for Predicting Mass Spectra from Molecules" (NeurIPS 2023, arXiv:2303.06470) and its ICEBERG successor (Goldman et al. 2024) use exactly this generate-then-score structure for this same MS/MS structure-elucidation problem.

Stage 2 here: a small MLP over [pred_fp, cand_fp, |pred-cand|, pred*cand] (1024 -> 128 -> 1), trained with a listwise softmax over each query's REAL Stage-1 top-25 shortlist -- the true candidate should get the highest score. Critically, the shortlist's negatives are the HARDEST, most informative ones available (near neighbors in fingerprint space that Stage 1 already confused for the right answer), not random in-batch negatives like Stage 1's own InfoNCE training.

First attempt, same 60k library as Step 4/5: only 56 real (query, shortlist) examples available to train the re-ranker on (out of 300 attempted) -- the same too-small-library problem again, now hitting Stage 2. Result: stage1-only top1 = stage1+2 top1 = 24/70, identical -- no measurable effect, but with 56 training examples this is underpowered, not evidence the approach fails.

Scaled library, 300,000 rows (5x): more real candidates per query pool means MORE queries are evaluable (102/300 vs 70/300) but also a HARDER task for Stage 1 alone (more real distractors per pool) -- Stage 1's own top1 drops from 37.3%/34.3% (smaller libraries) to 20.6%, as expected for a genuinely bigger haystack.

train_pool=4800  library=299400  rerank_train=300  query_holdout=300
stage1 top1:   21/102 evaluable (0.2059)
102 usable (query,shortlist) training examples for the re-ranker
stage1+2 top1: 25/102 evaluable (0.2451)

Real, positive result this time: Stage 1+2 (24.5%) beats Stage 1 alone (20.6%) on the exact same 102 evaluable queries -- a ~19% relative improvement, with nearly double the re-ranker training data (102 vs 56). Honest caveat: 102 examples is still a small training set for a 1024-dim input MLP: this is real, motivating evidence for the two-stage pattern on this task, not yet a large-sample-confirmed result -- the natural next step (not yet done) is the same library scale-up applied to rerank_train/query_holdout themselves, which needs more of the full 2.5M-row dataset than explored so far.

Script: scripts/spectral_retrieval_jax_two_stage_reranker.py.

Not yet done: real epochs over a much larger training pool (not fresh-random-forever over just 4,800), a candidate library large enough that most held-out queries are actually evaluable, and fixing armatura-spectral-retrieval-test (still schema/path-broken) so an actual third-party baseline comparison exists.

Details

Inspired by MSAlign (arXiv:2605.19752, indexed in quantumrag) and a public PyTorch reference implementation, neither of which is JAX-based or uses chemistry-informed features.

Verified correct on synthetic toy data before the optimizer test: forward-pass shape/NaN check, gradient-flow check (jax.value_and_grad, no zero-norm/dead parameters) -- so SGD's plateau above was diagnosed as an optimizer-choice issue, not a broken gradient.

Real schema note: train.parquet's true top-level columns are inchikey14/normalized_smiles (not molecule_id/smiles, an unverified guess made -- and never actually exercised, since that kernel failed on an unrelated path bug first -- in the sibling armatura-spectral-retrieval-test Kaggle kernel). Also: pq.ParquetFile(path).schema.names (the flat physical Parquet schema) collapses this file's 3 list<element: double> columns down to their shared child name, printing "element" three times and hiding the real names (ms2_mzs, ms2_normalized_intensities, collision_energy_ev) entirely -- pq.ParquetFile(path).schema_arrow.names or plain pd.read_parquet(...).columns give the real top-level names.

Scripts: scripts/spectral_retrieval_jax.py (toy/synthetic verification), scripts/spectral_retrieval_jax_real_data.py (Step 3, the fixed-batch memorization check), scripts/spectral_retrieval_jax_padded_batch.py (Step 4, padding/masking + real multi-batch training and held-out eval).
