QM/MM region utilities

Every QM/MM experiment in this repo (issue #283) needs the same three pieces: pick which atoms are "QM", cut a valid molecule out of them, and optionally weight that choice by something better than a fixed radius. scripts/qmmm/ collects the parts that survived testing, so new experiments import them instead of re-deriving the same two real bugs.

Step 1: partition a QM region around a reactive bond

from rdkit import Chem
from qmmm.region import partition_qm_mm_region

mol = Chem.AddHs(Chem.MolFromSmiles("OCCCCCC"))
qm_atoms, boundary_pairs = partition_qm_mm_region(mol, {0, 1}, radius=2)

partition_qm_mm_region walks outward from the seed heavy atoms (here, the O-C1 reactive bond) in heavy-atom hops. Hydrogens are added afterward, always following their own heavy atom -- never independently walked, since that spuriously cuts a terminal C-H bond and leaves an empty MM fragment. Any boundary bond that would cut into an aromatic ring pulls the whole ring into the QM region first: cutting a lone aromatic atom out of its ring produces an invalid molecule once capped with hydrogen.

Step 2: turn the region into a real molecule

from qmmm.region import sliced_geometry

atoms, geom_bohr = sliced_geometry(whole_atomic_numbers, whole_geom_bohr, qm_atoms, boundary_pairs)

sliced_geometry takes a coordinate SUBSET of one whole-molecule conformer -- never an independently re-embedded fragment. That distinction mattered more than it looked: an earlier version of the region-partitioning experiment re-embedded each fragment separately, and a classical MMFF94 correction that looked like it fixed the resulting error was later found to be compensating for that geometry choice, not for truncation itself (see QM/MM region partitioning's retraction). Every piece sliced from the SAME conformer removes that whole failure mode.

Step 3: weight the region by real bond order instead of radius

from qmmm.propagation import propagate_relevance

relevance = propagate_relevance(bond_order_matrix, seed_idx=[0, 1], n_nodes=n_atoms)
region = set(i for i in range(n_atoms) if relevance[i] > threshold)

propagate_relevance is Algorithm 1 of Hümmer, Sicking, Hüger & Gottschalk 2026 ("Diffuse2Seg", arXiv:2609.06491) -- non-linear p-Laplacian graph propagation, solved by Gauss-Jacobi iteration, originally built to spread point prompts through a diffusion model's self-attention for image segmentation. Here the "affinity" is real Mayer/Wiberg bond order between atoms instead of self-attention between image patches: a stronger bond lets relevance travel further before the edge-preserving smoothing throttles it, so a molecule's own aromatic rings and conjugated systems (which fixed-radius BFS cannot see) can shape the QM region.

Measured, not assumed

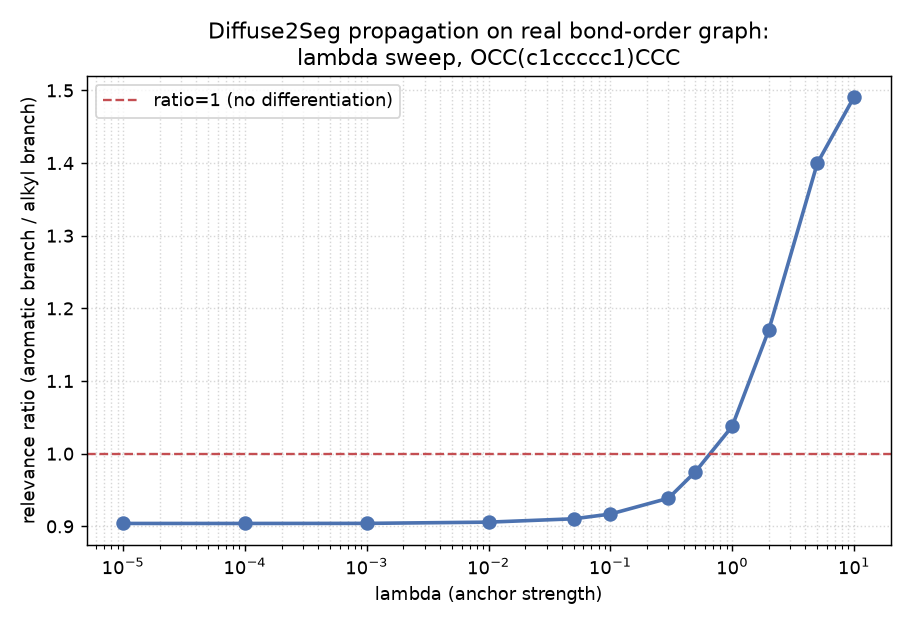

At the paper's own lam=1e-5 -- calibrated for a dense grid of prompts later merged together, not a single isolated seed -- the aromatic branch of a real branched/aromatic molecule (OCC(c1ccccc1)CCC) gets slightly LESS relevance than its alkyl branch (ratio 0.90), the opposite of the naive expectation that a stronger bond (1.412 aromatic vs. 0.991 alkyl) should propagate further. The ratio only crosses 1.0 around lam~0.5-1, and only reaches a large aromatic-favoring differentiation (ratio 1.49) at lam=10, two orders of magnitude above the paper's calibrated value. lam is not retuned to whatever value looks best -- the full sweep is reported so the real, measured lam-dependence is visible, not hidden.

Details

A real implementation bug, found and fixed only by reading the actual paper: earlier scripts in this repo (qmmm_bond_order_partition_vs_radius.py, qmmm_bond_order_aromatic_vs_alkyl_branch.py) called their propagation mechanism "Diffuse2Seg-inspired" and reported a 40-70% relevance difference between the aromatic and alkyl branches -- using a max-product-with-decay heuristic invented without having read the paper. That number does not reproduce with the real algorithm above at the paper's own hyperparameters; see the sweep table.

A real numerical bug, found and fixed by working out the exact limit: the p-Laplacian weight formula has a term that diverges as a node's local affinity-neighborhood becomes exactly uniform (g_i -> 0). An earlier version clamped this with an epsilon -- the same category of shortcut already rejected for degenerate eigenvalues elsewhere in this project (dense_evolution.physics.spectral, Kato's divided-difference formula). Worked out directly: as g_i -> 0, every affinity-connected neighbor already equals the node's own value, so the smoothing term's correct limit is simply "leave this node unchanged" -- implemented as an explicit special case, not an epsilon.

Full lambda sweep (OCC(c1ccccc1)CCC, aromatic-branch vs. alkyl-branch relevance at the same hop distance):

lambda	aromatic	alkyl	ratio
1e-5	0.045021	0.049805	0.9040
1e-4	0.045017	0.049800	0.9040
1e-3	0.044978	0.049746	0.9041
1e-2	0.044585	0.049220	0.9058
0.05	0.042255	0.046416	0.9104
0.1	0.039752	0.043356	0.9169
0.3	0.030731	0.032738	0.9387
0.5	0.026192	0.026857	0.9753
1.0	0.017166	0.016544	1.0376
2.0	0.010421	0.008904	1.1703
5.0	0.005443	0.003889	1.3997
10.0	0.002545	0.001707	1.4907

Not included in scripts/qmmm/, both real negative results with the full record in QM/MM bond order and electrostatic embedding: the MMFF94 ONIOM-style correction (retracted -- it was a geometry artifact) and electrostatic embedding (five real attempts, all worse than no embedding).

Status: not promoted to Dense-Evolution -- RDKit is not a Dense-Evolution dependency, and this is classical graph/geometry preprocessing (not JAX, not differentiable), a different category from dense_evolution.native_hf. Validated on two molecules (1-hexanol, OCC(c1ccccc1)CCC) for partitioning/slicing; the propagation function's real behavior is measured (above) but not yet shown to improve an actual reaction-energy comparison over fixed-radius BFS.

Scripts: scripts/qmmm/region.py, scripts/qmmm/propagation.py, scripts/qmmm_diffuse2seg_propagation_lambda_sweep.py (the sweep above).
