Online Robust Mahalanobis

Online Robust Mahalanobis tells you how far a new reading is from the usual. It learns from healthy readings where the numbers usually are and how much they usually move, and it measures the distance in units of that usual movement. A distance of 0 means exactly usual; the default alarm level is 7. 'Robust' means that a few strange readings do not spoil what it has learned.

Online Robust Mahalanobis scores each sample by how far it is from the centre of the healthy joint residual, measured in units of the residual's own spread. In a control loop it answers one question per reading: how many standard deviations of the healthy distribution away is this point, in the joint-space metric the healthy arm actually has?

1. What it is

The healthy residuals of a robot joint form a cloud around zero. Its shape is not a sphere: the joints are correlated, and a fault along one direction costs more than a fault along another. The classical way to measure distance in this cloud is the Mahalanobis distance: subtract the mean, divide by the covariance, take the Euclidean norm of the result. A sample that is far in units of its own distribution is anomalous.

The classical estimator uses the sample mean and the sample covariance. Both are sensitive to outliers. A single extreme sample can drag the mean far from the cloud, and inflate the covariance along its own direction so much that the same outlier looks normal under the new metric — the masking effect. Robust estimates of location and scatter fix this.

This module uses the geometric median for location and the median covariation matrix (MCM) for scatter. Both are 50 % breakdown estimators: half the samples must be corrupted before the estimate moves, against one outlier for the mean. Both are estimated online by averaged stochastic gradient (ASGD), one sample at a time.

The score of a sample is the Mahalanobis distance under the current MCM:

D(x) = sqrt( sum_j (1 / delta_j) * <x - m_bar, P_j>^2 )

where m_bar is the current location estimate, P_j is the j-th eigenvector of the averaged MCM V_bar, and delta_j the corresponding eigenvalue. The sum is over the d eigenvalues: it is the Mahalanobis distance written without inverting the matrix, using the eigendecomposition instead.

2. How it works

Two running estimates are maintained. m tracks the geometric median, V tracks the MCM. Both are updated by averaged stochastic gradient, one sample at a time.

For the geometric median, the paper's recurrence is

m_{n+1}     = m_n + gamma_{n+1} * (X_{n+1} - m_n) / ||X_{n+1} - m_n||
m_bar_{n+1} = m_bar_n + (1 / (n + 2)) * (m_{n+1} - m_bar_n)

The first line is a stochastic gradient step toward the sample, normalised so that every step has the same length. The normalisation is the robustness: a distant sample moves m by at most gamma_{n+1}, no matter how far it is. The second line averages the iterates, which accelerates convergence (Cardot, Cénac and Zitt 2013).

For the MCM, the same shape:

V_{n+1}     = V_n + gamma_{n+1} * (outer_{n+1} - V_n) / ||outer_{n+1} - V_n||_F
V_bar_{n+1} = V_bar_n + (1 / (n + 2)) * (V_{n+1} - V_bar_n)

with outer_{n+1} = (X_{n+1} - m_bar_n) (X_{n+1} - m_bar_n)^T the centred outer product of the new sample. The gradient is again normalised, this time to unit Frobenius norm.

The step size is

gamma_n = c_gamma * (n + n0) ** (-gamma_exp)

with gamma_exp in (1/2, 1) for convergence (Cardot and Godichon-Baggioni 2017).

The first n_init samples are not used for the ASGD updates. They are kept in a small buffer and used to compute an initial estimate of the location and scatter, from which the ASGD starts. Without the initialisation the ASGD gradients, whose scale is unit and not the scale of the data, would never reach the data.

3. Smallest example

import numpy as np
from dense_armor.utility.anomaly.mahalanobis import (
    OnlineRobustMahalanobis,
)

rng = np.random.default_rng(0)
det = OnlineRobustMahalanobis(feature_keys=["a", "b"], n_init=200)

for _ in range(500):
    x = rng.standard_normal(2)
    det.learn_one({"a": float(x[0]), "b": float(x[1])})

print(f"healthy  {det.score_one({'a': 0.0, 'b': 0.0}):.3f}")
print(f"far      {det.score_one({'a': 10.0, 'b': 10.0}):.3f}")

healthy  0.080
far      15.880

The healthy point sits at the centre of the cloud: under a standard bivariate Gaussian its Mahalanobis distance is small, and the score is 0.080. The far point is ten units away along both axes: the distance is large, and the score rises to 15.880, well past the default threshold of 7.0, the classical value for low-dimensional Gaussians.

4. On a real arm

The residual of joints 1-4 on a SyntheticArm payload fault. The fault (5 kg added at t = 2 s) shifts the residual on joints 1-5 by tens of N·m; the healthy run stays within ±0.15 N·m.

from pathlib import Path
from dense_armor.utility.anomaly.mahalanobis import (
    OnlineRobustMahalanobis,
)
from dense_armor.utility.datasets import SyntheticArm

ds = SyntheticArm(
    Path("test/fixtures/urdf/panda.urdf"),
    period_s=2.0, rate_hz=50.0, n_cycles=4,
    fault_at_s=2.0, fault="payload", payload_mass=5.0,
    noise_std=(1e-3, 5e-3, 5e-2), seed=0,
)

det = OnlineRobustMahalanobis(
    feature_keys=["r0", "r1", "r2", "r3"],
    threshold=7.0,
)

for sig, _ in ds.stream():
    q, qd, qdd = ds.trajectory(sig.t)
    tau_nom = ds.nominal_torque(q, qd, qdd)
    x = {f"r{j}": float(sig[f"tau_{j}"] - tau_nom[j]) for j in range(4)}
    _ = det.score_one(x)
    _ = det.learn_one(x)

Top: SyntheticArm. The fault sends the score past 100 in the first few samples after t = 2 s, then the score drops as the ASGD updates the location and the scatter estimate towards the new distribution — but the detector has already flagged every post-fault sample until the update catches up. Bottom: DriftStream. The score rises cleanly at the drift and stays above the threshold.

5. The learned 95 % region

The Mahalanobis distance is a scalar, but the metric it uses is a d-dimensional ellipsoid. Plotting it in two dimensions makes the shape visible.

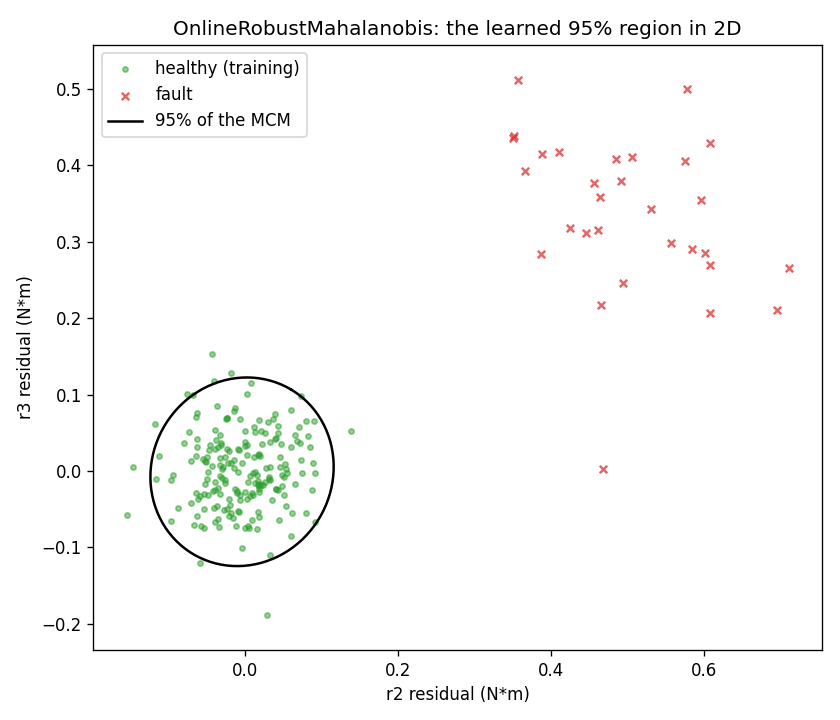

Two joints' residuals, first 200 samples of healthy training (green dots), then 30 fault samples (red crosses). The black ellipse is the 95 % quantile of the MCM currently estimated: a new sample inside the ellipse has Mahalanobis distance below chi2_2(0.95), outside it is flagged. The fault samples all fall outside.

6. Numbers

SyntheticArm (200 samples, 100 healthy, 100 fault) and DriftStream (2000 samples, one sudden drift at half), every detector built with its defaults.

Stream	Protocol	ROC-AUC	False alarms on the healthy part	Threshold at the last healthy sample
SyntheticArm	learn-on-healthy	1.000	0.000	7.0000
SyntheticArm	learn-on-all	1.000	0.000	7.0000
DriftStream	learn-on-healthy	0.993	0.000	7.0000
DriftStream	learn-on-all	0.938	0.000	7.0000

The default n_init is 100, and on SyntheticArm the healthy part has exactly 100 samples: in the benchmark run the detector is still in its initialisation when the healthy part ends, so every healthy score is 0.0 and the false-alarm value 0.000 on SyntheticArm follows from that, not from a decision of the detector. The class is the most accurate of the five on this repository's benchmark and the fastest (0.036 ms per sample on the arm).

Details

Where the rules come from

Guillot, Godichon-Baggioni, Robin and Sansonnet (arXiv:2601.03957) introduce the online median and MCM in Section 3. The recurrence for the geometric median is equation 8, for the MCM equation 10. The Mahalanobis distance under the MCM is Equation (1) in Section 2.2. The step size gamma_n = c * n ** -gamma with gamma in (1/2, 1) is from Cardot, Cénac and Zitt (2013) and Cardot and Godichon-Baggioni (2017).

The paper's full method also reconstructs the eigenvalues of the true covariance from the MCM by a Robbins-Monro scheme (equations 4-5) and scales the distances by chi2_d(0.5) / med(D_1..n) (equation 1). Neither step is implemented here.

Choices stated explicitly

• Offline initialisation. The geometric median is initialised by the Weiszfeld algorithm (Guillot et al., equation 6). The MCM is initialised by the empirical average of the centred outer products, not the Weiszfeld offline MCM of Section A.2: with n_init of tens of samples the average is more stable than the Weiszfeld iteration, which for small samples can converge to a rank-one solution. The online ASGD refines the estimate as soon as new samples arrive.
• Step length cap. A max_step_frac cap on the ASGD step (default 0.1) prevents a single large sample from moving V by more than a fraction of its own norm. Without the cap, c_gamma = 1 and gamma_exp = 0.7 can move V by 1 in Frobenius norm in one step, much larger than the scale of the data, and the average oscillates through zero. This is a numerical safeguard, not part of the paper.
• Eigenvalue floor. Every eigenvalue of V_bar is floored at trace(V_bar) / d * 1e-3. The floor keeps the score bounded when the ASGD first steps drive V through zero, without changing the shape of the metric. Also a numerical safeguard.
• No chi-squared scaling. The paper's equation 1 divides the distances by the median of the past distances, so that the calibrated threshold is the median of a chi2_d distribution. This module does not apply the scaling: the threshold is the one the user calibrates, and the default 7.0 is the classical value for low-dimensional Gaussians.
• Step index. Guillot et al. use gamma_n = c_gamma (n + n0)^(-gamma) with n counted from the first sample (0.0395 c_gamma for the first update after n_init = 100 with gamma = 0.7). Here n also counts from the first sample (n = n_init + k at the k-th update) and the offset is one larger, gamma_n = c_gamma (n + n0 + 1)^(-gamma): the first update after n_init = 100 uses 0.0393 c_gamma. The averaged estimates use the weight 1 / (n + 1) with the same n, which is the paper's 1 / (n + 2) for the previous step index. The offset of one in gamma_n is a choice of this implementation.
• Threshold. A fixed float, default 7.0.

Measured cost

At the benchmark defaults (n_init=100, 4 features), on one CPU thread:

• 0.036 ms per sample for learn_one + score_one on the arm stream;
• memory flat: d + d^2 arrays, independent of the stream length.

The budget_s declared by the class is 0.005 s.

The bug the module fixes

The literal Section 3.2 update of Guillot et al. (page 7) without the step cap and without the eigenvalue floor was reimplemented outside the library and run on the 80 healthy residuals that follow n_init = 20, on the issue scenario (joint 1 of the SyntheticArm payload fault, period_s=2.0, rate_hz=50.0, n_cycles=2, payload_mass=5.0, seed 0).

With c_gamma = 1.0 the running average V_bar crosses the zero matrix: the final trace(V_bar) is -2.88e-04. Scoring each sample before the update, 19 of the 80 steps have a non-positive eigenvalue and the maximum score is 11.36; scoring after the update, 20 steps and a maximum of 5.96. The cause is the scale of the normalised step against the scale of V: the step has Frobenius norm ~0.04, while V itself is of order 2.6e-03, so V_bar moves through the origin and 1 / delta diverges. With c_gamma equal to the variance of the residual (2.57e-03): 0 steps, trace(V_bar) = +1.37e-03, maximum 3.70.

The two guards are max_step_frac = 0.1 and the eigenvalue floor trace(V_bar) / d * 1e-3. On the same 80 samples with the guards the maximum stays below the threshold. The reproduction is the module's test test_mahalanobis_healthy_scores_stay_below_threshold, which uses the 100 healthy residuals of the issue scenario with n_init = 20 and asserts the maximum is 3.739 < 7 (80 of the 100 scores non-zero).

OCSVM is the alternative when the fault is not a shift but a change of the distribution's shape.
